Brand Name : HUAZE
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1000 pieces
Price : Negotidated
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000 pieces per week
Delivery Time : 3 - 4 weeks
Packaging Details : pallets
Name : Architectural Cladding Building Facade Expanded Metal Mesh Stainless Steel Sheet Galvanised PVC Coated
TYPE : Expanded mesh
Opening : Customized
Width : Customized
Material : Stainless steel, Galvanised, PVC Coated
Length : Customized
Thickness : 3mm 4mm 5mm
Application : Decking
Architectural Cladding Building Facade Expanded Metal Mesh Stainless Steel Sheet Galvanised PVC Coated
Expanded metal facade also called expanded mesh cladding, is widely used in the exterior walls of buildings because of its beautiful appearance and strong bearing capacity, such as stadiums, shopping malls, exhibition halls, museums, concert halls and other large buildings. The large openings on the expanded metal facade provides good ventilation, sunshading and give a comfortable environment. In addition, it can also reduce noise, so it is often used in schools, libraries, hospitals and office buildings.
 The expanded metal cladding can be made of different materials such as stainless steel, mild steel, aluminum, copper, and brass. Aluminum expanded mesh is the most commonly used cladding due to its lightweight and excellent corrosion resistance.
| Thickness of plate (mm) | Nominal size of mesh(mm) | Size of standard products(mm) | Calculated weigth | |||
| THICKNESS | SWD | LWD | STRAND | WIDTH | LENGTH | kg/m2 |
| 0.8 | 10 | 25 | 1.12 | 1.41 | ||
| 12 | 30 | 1.35 | ||||
| 15 | 40 | 1.68 | ||||
| 2 | 18 | 50 | 2.03 | 1800 2000 2500 | 3600 4000 5000 | |
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.26 | 4.42 | |||
| 36 | 100 | 4.05 | ||||
| 44 | 120 | 4.95 | 5.29 | |||
| 3 | 36 | 100 | 4.05 | |||
| 44 | 120 | 4.95 | ||||
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
| 2500 | 6400 | |||||
| 65 | 180 | 4.6 | 2000 | 6400 | 3.33 | |
| 2500 | 8000 | |||||
| 4 | 22 | 60 | 4.5 | 1500 | 2000 | 2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 | ||
| 38 | 100 | 6 | 2000-4500 | 9.91 | ||
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
| 35 | 80 | 6 | 2000-4000 | 14.71 | ||
| 38 | 100 | 7 | 2000-4500 | 14.67 | ||
| 56 | 150 | 6 | 2000-6000 | 8.41 | ||
| 76 | 200 | 6 | 2000-6000 | 6.19 | ||
| 6 | 32 | 80 | 7 | 2000-4000 | 20.6 | |
| 38 | 100 | 7 | 2000-4500 | 17.35 | ||
| 56 | 150 | 7 | 2000-6000 | 11.77 | ||



 Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
 All inquires will be replied within 8 hours
 High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
 Quality Quarantee:
 A. All goods strictly inspected during production.
 B. All products must be checked strictly before packing.
 C. Every consignment must be re-inspected before shipment.
 D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.

 Shipment:
 A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
 B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.

|   |

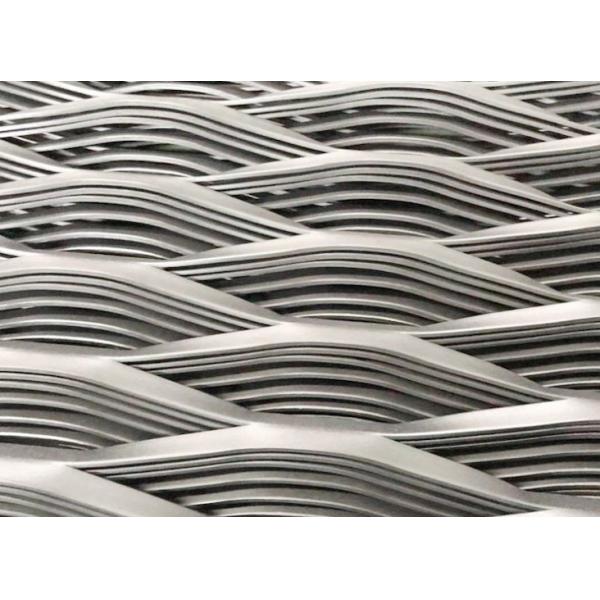

| Stainless Steel Expanded Metal Sheet Galvanised Mesh Facade Architecture 4mm Thickness Images |
